The HSP Max Air Flow Bundle is designed for 2001-2004 Chevrolet Silverado and GMC Sierra trucks equipped with the LB7 Duramax engine. This comprehensive bundle significantly improves airflow, performance, reliability, sound, and the overall appearance of the engine bay.

If you are looking to replace and upgrade most of the factory intake and charge-air piping on your LB7, the 183-HSP Max Air Flow Bundle provides the essential components in one complete package.

What Is the HSP Max Air Flow Bundle?
The HSP Max Air Flow Bundle combines four key airflow upgrades: a Cold Air Intake, Factory-Style Cold Side Tube, Hot Side Intercooler Tube, and Max Flow Turbo Inlet Horn.

Together, these components allow the engine and turbocharger to breathe more efficiently by reducing restriction and turbulence throughout the intake and charge-air systems. The result is improved airflow, throttle response, turbo sound, reliability, and engine bay appearance.

Cold Air Intake
The HSP Cold Air Intake features a 4.5-inch mandrel-bent intake tube designed to maximize airflow into the turbocharger. The intake is paired with HSP's high-flow seven-layer air filter and a custom heat shield that helps isolate the filter from engine bay heat.

The heat shield allows the intake to draw cooler outside air through the headlight bezel and factory fender opening. Dyno testing has shown gains of up to 20 horsepower and 58 lb-ft of torque, although results may vary depending on the truck's tuning and supporting modifications.

Factory-Style Cold Side Tube
The Factory-Style Cold Side Tube is manufactured from 3-inch mandrel-bent tubing to carry a greater volume of air with minimal turbulence. Compared to the restrictive factory piping, its smooth bends help improve airflow through the charge-air system while supporting better throttle response and overall performance.

Hot Side Intercooler Tube
The Hot Side Intercooler Tube also features a 3-inch mandrel-bent design with smooth, sweeping bends that help reduce restriction and turbulence.

One of the most important improvements is the straight-style connection to the intercooler. This design replaces the failure-prone factory lower intercooler boot configuration, creating a stronger and more reliable connection.

Max Flow Turbo Inlet Horn
The factory turbo inlet horn is a major restriction point in the LB7 intake system. HSP replaces the restrictive factory component with a smooth 3.5-inch design that significantly improves airflow into the turbocharger.

When paired with the HSP Cold Air Intake and upgraded charge-air piping, the Max Flow Turbo Inlet Horn helps improve intake efficiency, throttle response, turbo sound, and overall performance.

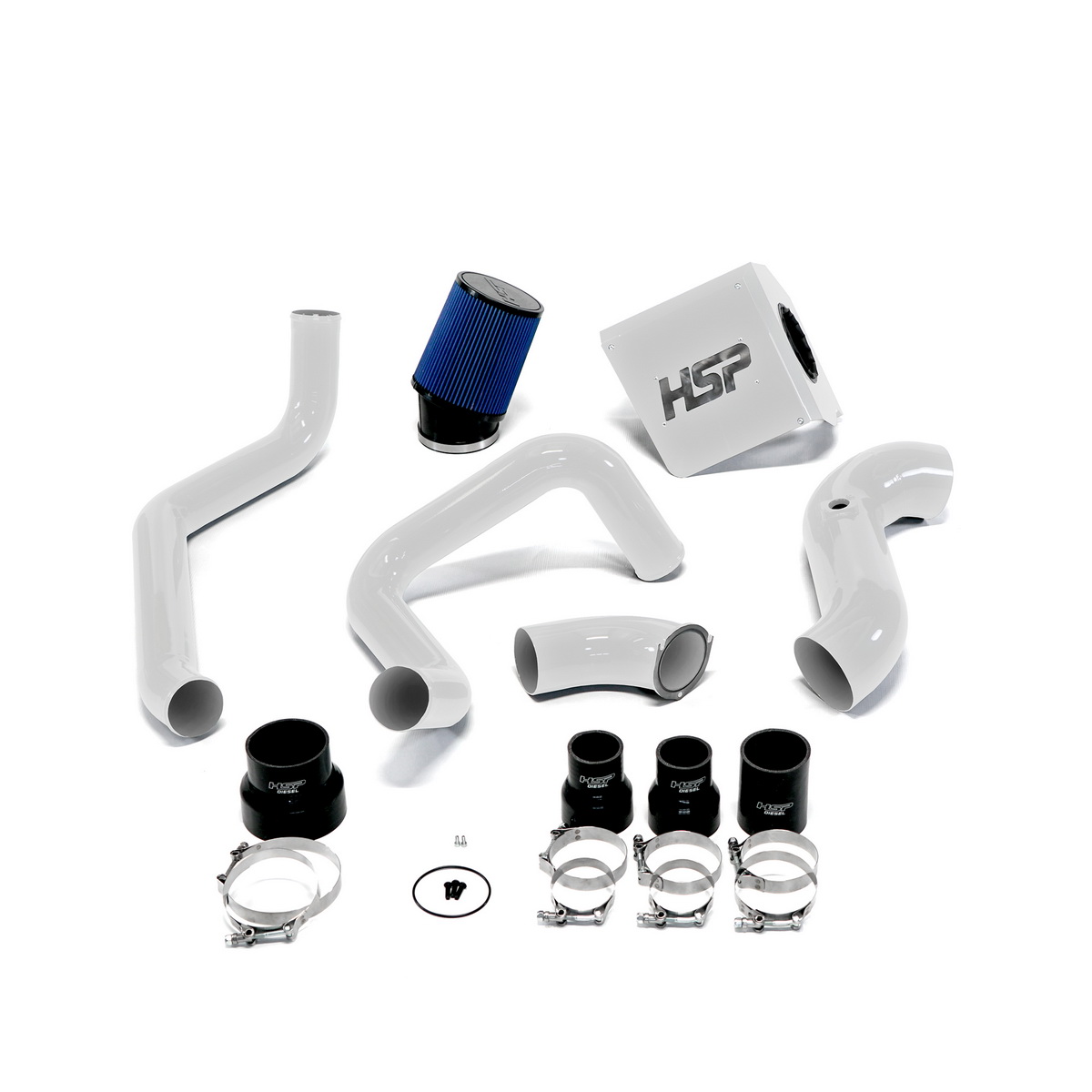

What's Included?

• 1x Hot Side Intercooler Tube (HSP-IN-207)
• 1x Factory-Style Cold Side Tube (HSP-IN-214)
• 1x 4.5-inch Cold Air Intake Tube (HSP-IN-152)
• 1x 4.5-inch Hole Heat Shield Box (HSP-IN-748)
• 1x Heat Shield Box Lid (HSP-IN-746)
• 1x Max Flow Turbo Inlet Horn (HSP-IN-235)
• 1x 4.5-inch Air Filter (RFB-413-RFAB)
• 4x 1/8-inch Aluminum Rivets (RFB-098-RFAB)
• 3x 10-32 x 3/8-inch Button Head Screws (RFB-099-RFAB)
• 16x Trim Lock (RFB-411-RFAB)
• 1x Heat Shield Box Lid Backer Plate (RFB-746-BP-RFAB)
• 2x M4 x 0.7 x 10mm Bolts (RFB-901-RFAB)
• 2x 2.25-inch T-bolt Clamps (RFB-420-RFAB)
• 4x 3-inch T-bolt Clamps (RFB-422-RFAB)
• 1x 3-inch x 4-inch Straight Boot (RFB-430-RFAB)
• 2x 2.25-inch to 3-inch Reducer Boots (RFB-441-RFAB)
• 1x 3.5-inch T-bolt Clamp (RFB-423-RFAB)
• 1x 4.5-inch T-bolt Clamp (RFB-435-RFAB)
• 1x 4.5-inch to 3.5-inch Reducer Boot (RFB-496-RFAB)
• 1x Turbo Inlet O-ring (RFB-819-RFAB)
• 3x M6 x 1.0 x 20mm Button Head Screws (RFB-908-RFAB)

Vehicle Fitment

• LB7: 2001-2004 Chevrolet/GMC 6.6L Duramax-VIN Code 1
• How to Identify Your VIN Code: The eighth character of the vehicle's VIN identifies the engine code. The tenth character identifies the model year of the truck.

Overview

• Fits 2001-2004 Chevrolet and GMC LB7 Duramax trucks
• Includes intake, hot side, cold side, and turbo inlet upgrades
• Improves airflow throughout the intake and charge-air systems
• Reduces restriction and airflow turbulence
• Supports improved throttle response and turbo spool-up
• Improves engine and turbo sound
• Straight intercooler connection removes a common factory failure point
• High-strength reinforced silicone boots
• Heavy-duty T-bolt clamps
• Available in multiple powder coat options
• Improves the appearance of the engine bay
• Complete bundle offers simplified installation and added value

Our Warranty

HSP No BS Limited Lifetime Warranty

At HSP, we believe in our products and stand firmly behind every part that leaves our facility. We have always supported our customers, and the HSP No BS Limited Lifetime Warranty makes that commitment official.
